NH FUSE 63 AMP
Description
NH FUSE 63 AMP
NH FUSE 63 AMP

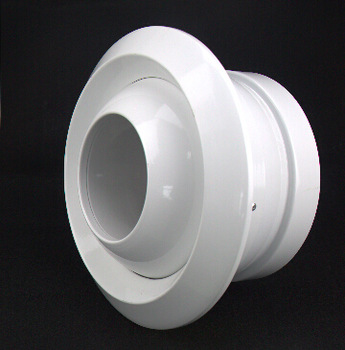

JET DIFFUSER EYEBALL TYPE WHITE POWER COATED (SIZE - 275MM)
PAD TYPE DOUBLE SKIN AIR WASHER UNIT(TYPE - DS-AWU-BC, CFM-15000, SP-70MMWG, BLOWER SIZE-BC-710 X 1, MOTOR(HP)-10.0, FAN SPEED RPM-1049, FAN EFF-81%, MOTOR-6.500BKW, SPL-77, FAN-8.78, PAD-30.0, PAD-200) , OUTER SKIN - 0.6MM THICK PRE-COATED SHEET, INNER SKIN - 0.6MM THICK PLAIN GI SHEET , INNER SKIN (WET SECTION) - GI SHEET, FRAME WORK - EXTRUDED ALUMINUM PROFILE, PANEL THICKNESS - (25±2)MM THICK , INSULATION OF PANELS - PUF (INJECTED) INSULATION (CFC/HFC FREE & FIRE RETARDANT)., WET SECTION - 18G SS-304 STAINLESS STEEL WATER STORAGE TANK. TANK CONSISTING OF 200MM THICK CELLULOSE PAD (AMCOOL/DRI APPROX. 88-89% ), CPVC WATER DISTRIBUTION ARRANGEMENT, CPVC PIPING (BETWEEN PUMP SUCTION AND DISTRIBUTION PIPE ONLY), SOCKET CONNECTION (FOR MAKEUP, QUICK FILL, OVERFLOW, DRAIN AND SUCTION) & SINGLE PHASE / SINGLE WATER CIRCULATING PUMP., BLOWER (BELT DRIVEN) - DIDW BACKWARD CURVED BLOWER MAKE ‘WOLTER’ , BLOWER & MOTOR MOUNTING - FOR FLOOR MOUNTED: BLOWER AND MOTOR ARE MOUNTED ON COMMON EXTRUDED ALUMINUM /GI CHANNEL BASE FRAME WITH RUBBER MOUNT VIBRATION ISOLATORS AND CONNECTED TO THE CASING WITH FIRE RETARDANT CANVAS CONNECTION. INSPECTION DOOR ARE EQUIPPED WITH LIMIT SWITCH, MARINE LIGHT & SAFETY GUARD, MOTOR (BELT DRIVEN/PLUG FAN) - TEFC (IE-02 REF. STD. IS:12615-2011) MOTOR MAKES ABB / BBL / CROMPTON / SIEMENS (BELT DRIVEN FAN WITH DRIVE PACKAGE AND V-BELTS) , PRE FILTERS - 50MM THICK ALUMINUM WIRE MESH FILTERS WITH GI FRAME
V - BELT SPA - 2720
EXPENSION VALVE 5.5 TR
.jpg)
GUMBOOT PVC STEEL TOE
CAPACITOR 12.5 MFD
UNIVERSAL CLAMP 150MM (MS PIPE) (M12)
POWER CONTACTOR 3TF-48 (COIL VOLT - 110)
PENCILE
CASTING WELDING ROD
